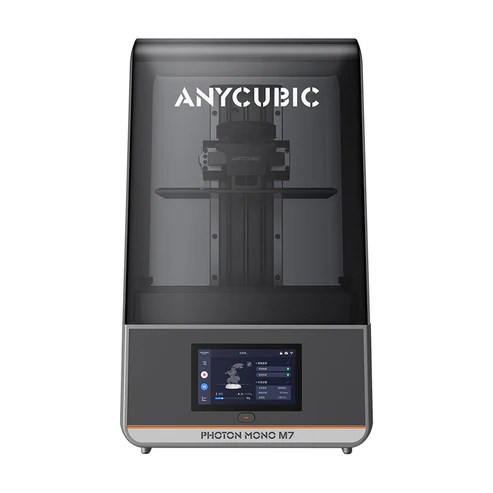

Anycubic Photon Mono M7
90mm/h for Even Standard Resin | 14K High-Precision Optical System | Intelligent Workflow-Assist Printing
14K High-Resolution Exposure Screen
The 10.1-inch 14K exposure screen boasts a 13312*5120 resolution with highly detailed XY axis pixels, measuring just 16.8*24.8 microns. It offers a minimum forming diameter of 0.15mm and a minimum outlet diameter of 0.25mm.
Sample Print
Product Description
Machine weight
12KGMachine leveling

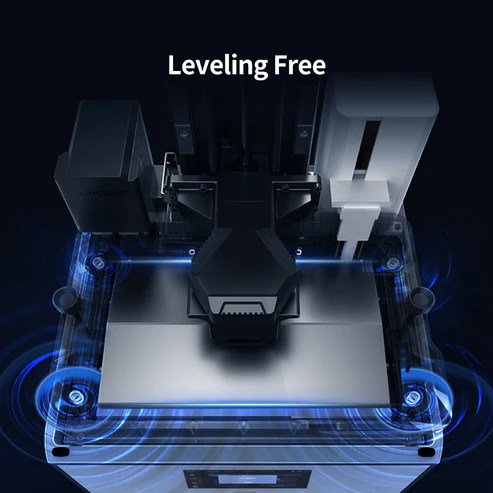

Leveling·freeMachine dimensions
312*345*520mmBuild volume
223*126*230mmPackage dimensions
620*395*395mmLayer height
≥0.01mmLight source
COB light sourceLcd screen size
10.1″, 14K (13320 * 5120)Light intensity
4500±10%μW/cm³Release film
Improved ACF filmLight uniformity
≥90%Printing speed
Standard Resin 0.1mm layer height;90mm/h peek speed; High Speed Resin 0.1mm layer height: 150mm/h peek speed
