Elegoo Mars 4 DLP Resin 3D Printer
- DLP 3D Technology
- 20,000+ Hours Lifespan

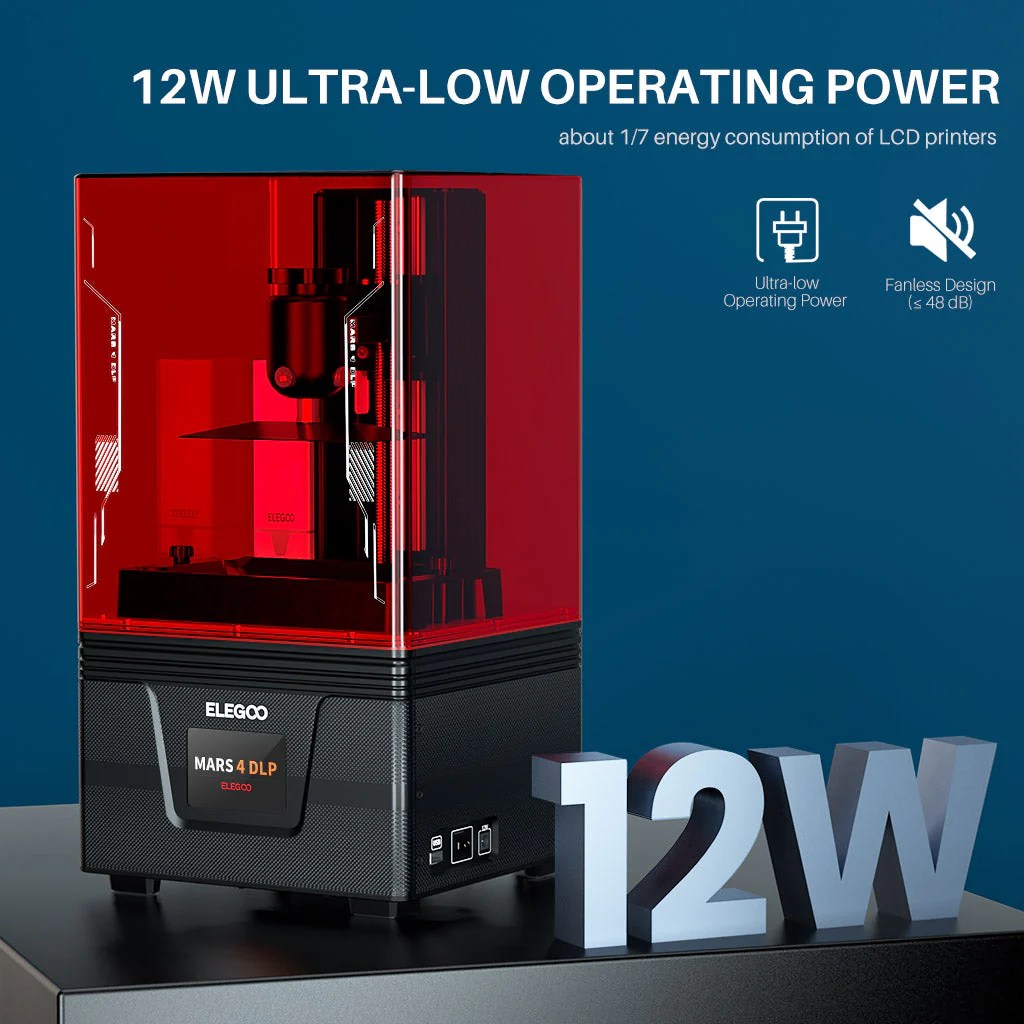

- Low Power & Ultra-quiet Printing
- More Stable Structure
- Smart Voxeldance Tango & Autodesk Fusion Slicer
- Purified Printing Environment
₨ 230,000
Share:
DLP 3D Technology
Digital Light Processing (DLP) uses a digital light projector to directly project the entire layer image to the bottom of the resin tank, with the UV beam selectively projected by a digital micromirror device (DMD) onto the given position to be cured.ELEGOO DLP projector adopts the LG high-performance LED light source + 13-layer lens set design, with light intensity up to 4mw/cm2 and light uniformity up to 95%, coupled with 95% light transmittance tempered glass, which minimizes light scattering and light bleed. The result is greater print accuracy than LCD 3D printers with the same resolution.
Greater Print Accuracy
ELEGOO DLP projector adopts the LG high-performance LED light source + 13-layer lens set design, with light intensity up to 4mw/cm2 and light uniformity up to 95%, coupled with 95% light transmittance tempered glass, which minimizes light scattering and light bleed. The result is greater print accuracy than LCD 3D printers with the same resolution.
Product Description
BUILD VOLUME
132.8 x 74.7 x 150 mm³
PRINTING SPEED
30-70 mm/h
LAYER THICKNESS
0.01-0.2 mm
XY RESOLUTION
0.05 mm (2560*1440)
Z-AXIS ACCURACY
0.02 mm
PRINTING TECHNOLOGY
DLP
LIGHT SOURCE
TI optical machine + full grayscale
anti-aliasing algorithm, LED light source
LCD SCREEN SIZE
No
LCD SCREEN PROTECTOR
Ultra clear tempered glass
CONNECTION METHOD
USB offline printing
SYSTEM
EL3D-3.0.2
SLICING SOFTWARE
Voxeldance Tango & Autodesk Fusion
OPERATING SCREEN
3.5-inch resistive touch screen
LANGUAGE
Chinese, English
AIR PURIFIER
Plug-in
OTHER FUNCTIONS
N.A.
RESIN
Supports most resins on the market (water-washable, standard, ABS-like, plant-based, etc.)
POWER REQUIREMENTS
100-240V 50/60Hz 12V 1.5A 18W
HEAT DISSIPATION METHOD
Fanless design, printing noise below 48db
DIMENSIONS
246 x 230 x 453 mm³
NET WEIGHT
6.8 kg
GROSS WEIGHT
10.34 kg
