Elegoo Mars 4 Ultra Resin 3D Printer
- 7-inch 9K mono LCD
- 8520×4320 resolution
- Up to 150mm/h
- High-Speed Wifi Transfer
- Powerful Linux OS
- 4-point leveling system
- Build volume of 153.36×77.76×165 mm³
₨ 125,000
Share:
9K Accuracy with Stunning Detail
The ELEGOO Mars 4 Ultra offers exceptional printing quality and details. It features a 7-inch 9K Mono LCD with 8520*4320 resolution that captures every tiny detail, allowing you to produce highly detailed models with an incredible 18 microns XY precision.
Improved Printing Experience
There is a large cooling fan and heat-conducting copper tubes positioned next to the COB light source for rapid heat dissipation. This feature not only enhances the printer’s performance but also extends its service life.The upgraded air purifier has a protective plastic case to safeguard the built-in activated carbon filter during transportation and effectively remove resin odor during printing.The printer comes with Voxeldance Tango Slicer, which offers both static mode and dynamic mode (including smooth and high-speed mode) to improve your printing efficiency. The open-sourced GOO slice file format is compatible with third-party slicing software, such as CHITUBOX and Lychee Slicer.
COB Light Source + Fresnel Collimating Lens
Experience vertical and uniform exposure of 405nm wavelength beam thanks to the COB light source and Fresnel collimating lens, which provides consistent curing across the entire build area with less than a 5-degree light angle and 92% light uniformity. This ensures that your models have a smooth and even surface finish.
Stable Printing Performance

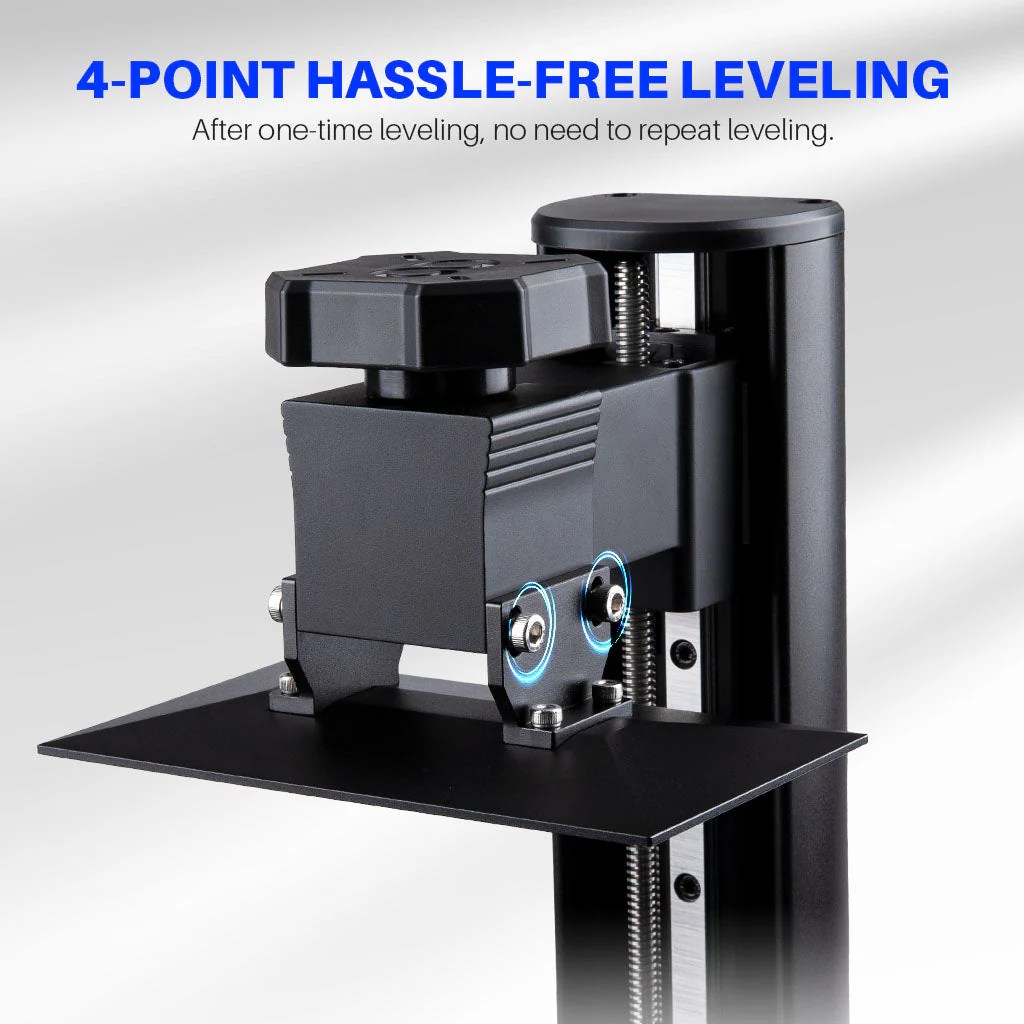

The Z-axis adopts a linear guide rail structure with an accuracy of 0.02mm, ensuring precise and stable movement to help eliminate riffles on final prints and produce smooth and delicate surfaces on your models.The 4-point leveling system with four clockwise-tightening screws is design to eliminate the need for repeated leveling after one-time leveling, saving you time and effort.The build plate has a laser-carved surface to enhance adhesion during the printing process, even when printing large models.

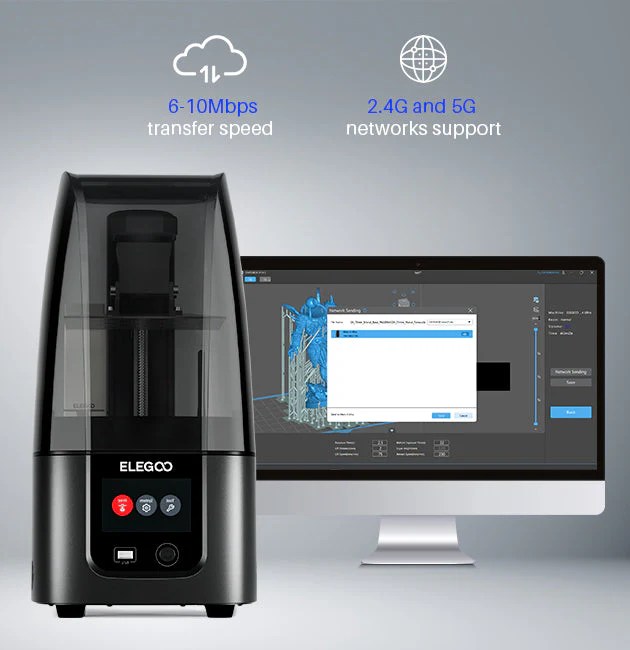

High-Speed Wifi Transfer
The brand new Linux OS with built-in 4G ROM supports Wi-Fi transfer, with a transmission speed of 6-10Mbps. Plus, it is compatible with both 2.4G and 5G networks, making file transfer a breeze from your computer or mobile device.The detachable Wifi antenna is conveniently placed on the side of the printer’s Z-axis, making it easy to connect to your network.
up to 150mm/h Printing Speed
Mars 4 Ultra’s fast printing capabilities are equally impressive, allowing you to achieve a print speed of up to 150mm/H with ACF release liner film and the upcoming ELEGOO rapid standard resin.This 3x faster printing speed enables you to produce high-quality models with incredible speed and efficiency.
Comparision
Product Description
BUILD VOLUME
153.36 x 77.76 x 165 mm³
PRINTING SPEED
MAX 150 mm/h
LAYER THICKNESS
0.01-0.2 mm
XY RESOLUTION
18 Îĵm (8520×4320)
Z-AXIS ACCURACY
0.02 mm
PRINTING TECHNOLOGY
MSLA
LIGHT SOURCE
COB light source + Fresnel collimating lens
LCD SCREEN SIZE
7-inch 9K mono LCD
LCD SCREEN PROTECTOR
9H hardness tempered glass
CONNECTION METHOD
USB offline printing & WiFi
SYSTEM
EL3D-4.0
SLICING SOFTWARE
Chitubox & Voxeldance Tango & Autodesk Fusion
OPERATING SCREEN
4.0-inch Capacitive Touch Screen
LANGUAGE
Chinese, English, Japanese, Dutch, Korean,
French, German, Russian, Italian, Spanish,
Turkish, Portuguese
AIR PURIFIER
Plug-in
OTHER FUNCTIONS
N.A.
RESIN
Supports most resins on the market (water-washable, standard, ABS-like, plant-based, etc.)
POWER REQUIREMENTS
100-240V 50/60 Hz 24V 3A
HEAT DISSIPATION METHOD
3 copper heat pipes + single fan
DIMENSIONS
227 x 227 x 443.5 mm³
NET WEIGHT
6.5 kg
GROSS WEIGHT
8.3 kg
