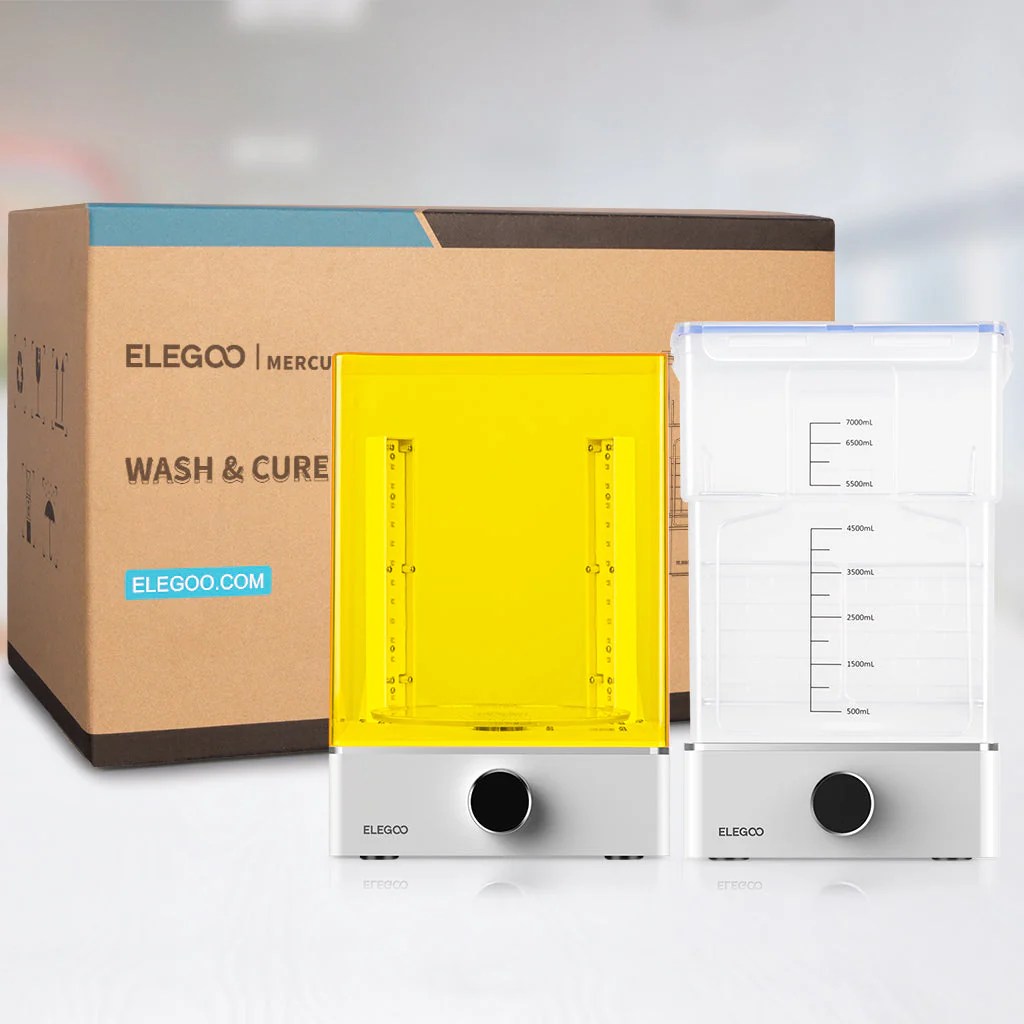

Elegoo Mercury X Bundle
- 360 ° Three-Dimensional Curing
- Dual function of washing and curing
- Large washing volume of 7000ml
- Easy and intuitive operation
- UV Protection Cover
- Wide Compatibility
₨ 99,000
Share:
Convenient Operation Settings
Simply press and hold the knob for 3 seconds to turn on, with a neatly interface for easily operating the washing and curing functions. The settings time can be adjusted for maximum 30 minutes according to your needs.
360° all-round exposure
2 adjustable L-shaped light bars and increased 4 LED lights under the 360° rotating turntable paired with Fresnel lens to emit UV light with a uniform wavelength of 405nm, ensuring that the model is evenly exposed from all angles.
Large washing volume
With an 7000ml large capacity sealed water tank, you can directly wash large models printed or clean parts in batches, which offers substantial time savings and improves your productivity.Friendly Tips: Kindly be aware that for the Saturn 4 series and Jupiter series, the build platform must be removed for cleaning, which is different from other applicable models. For other models, please refer to the MAXIMUM WASH VOLUME in the specification section and assess whether the platform needs to be removed for cleaning based on the model’s height.
UV Protection Cover
The transparent cover of the curing machine can block up to 99.9% of ultraviolet rays to improve resin solidification rate and protect your eyesight during curing process. A safety option automatically switches off the UV lights when you remove the cover.
Operation Instructions
1.
After the model is printed, please clean and blow-dry the model before putting it into the machine.2.
If the model become yellow after curing, please reduce the curing time. Over curing will lead to a yellowish model.3.
Recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%.4.
Please do not use it for more than 40 minutes at a time to avoid overheating5.
Cure Time: If model diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly.6.
Special Notes: The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.
Product Description
Specification
Mercury X Wash Machine
Control Method
Knob + Button
Rated Power
12W
Input Voltage
110V/240V 50/60Hz
Time Setting
0-30mins
Machine Size
255mm*155mm*385.5mm
Maximum Wash Volume
(with platform)180mm*121mm*153mm
(without platform)201mm*124mm*255mm
Machine Net Weight
2.27kg
Mercury X Cure Machine
Control Method
Knob + Button
Rated Power
36W
Input Voltage
110V/240V 50/60Hz
Time Setting
0-30mins
Machine Size
246mm*230mm*363.5mm
Maximum Curing Size
200mm*260mm
Machine Net Weight
2.4kg
