User-Friendly Design

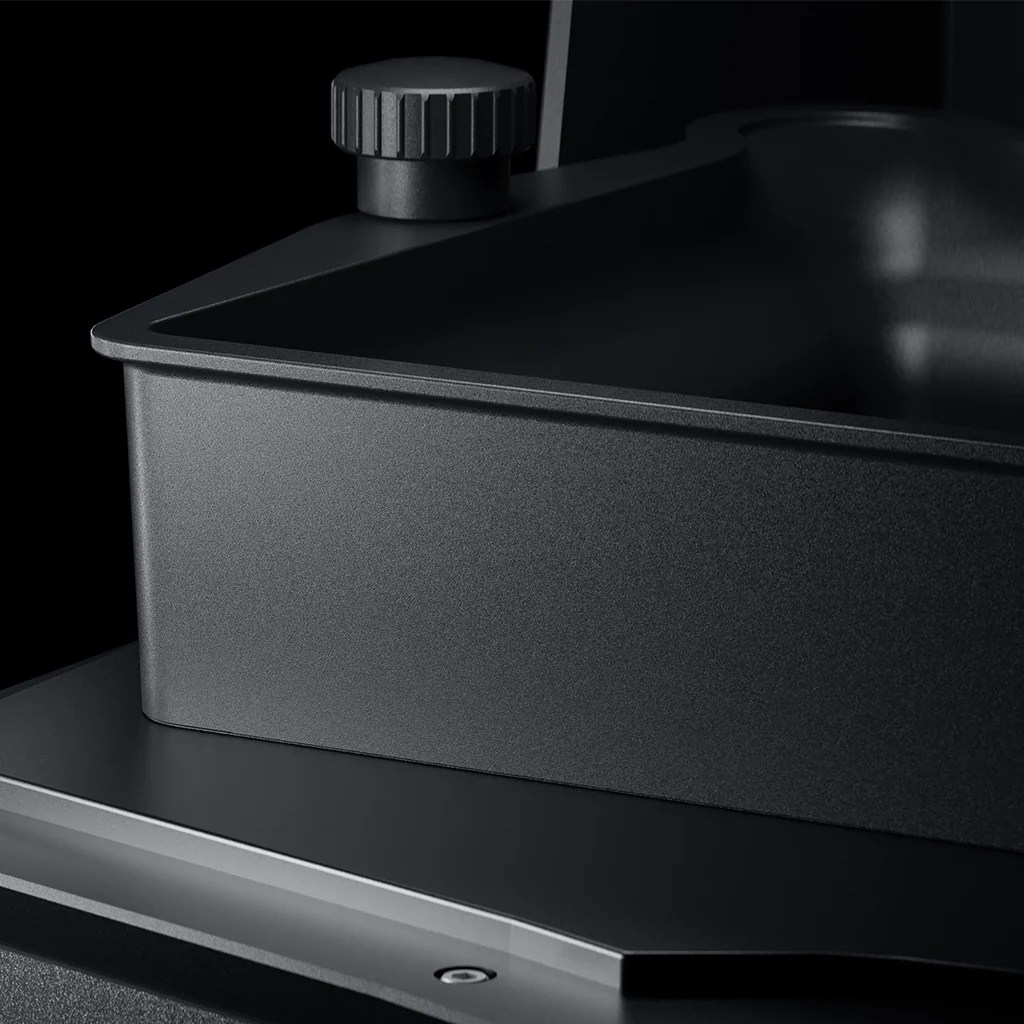

ELEGOO is dedicated to offering users a convenient printing experience. From the quick-release design of the build plate to the dual pour spouts design of the resin tank, along with the drip tray design to prevent resin drips, the replaceable tank lock, and the flip-up cover design for effortless access, every detail has been carefully considered to make your operation easier and more enjoyable.

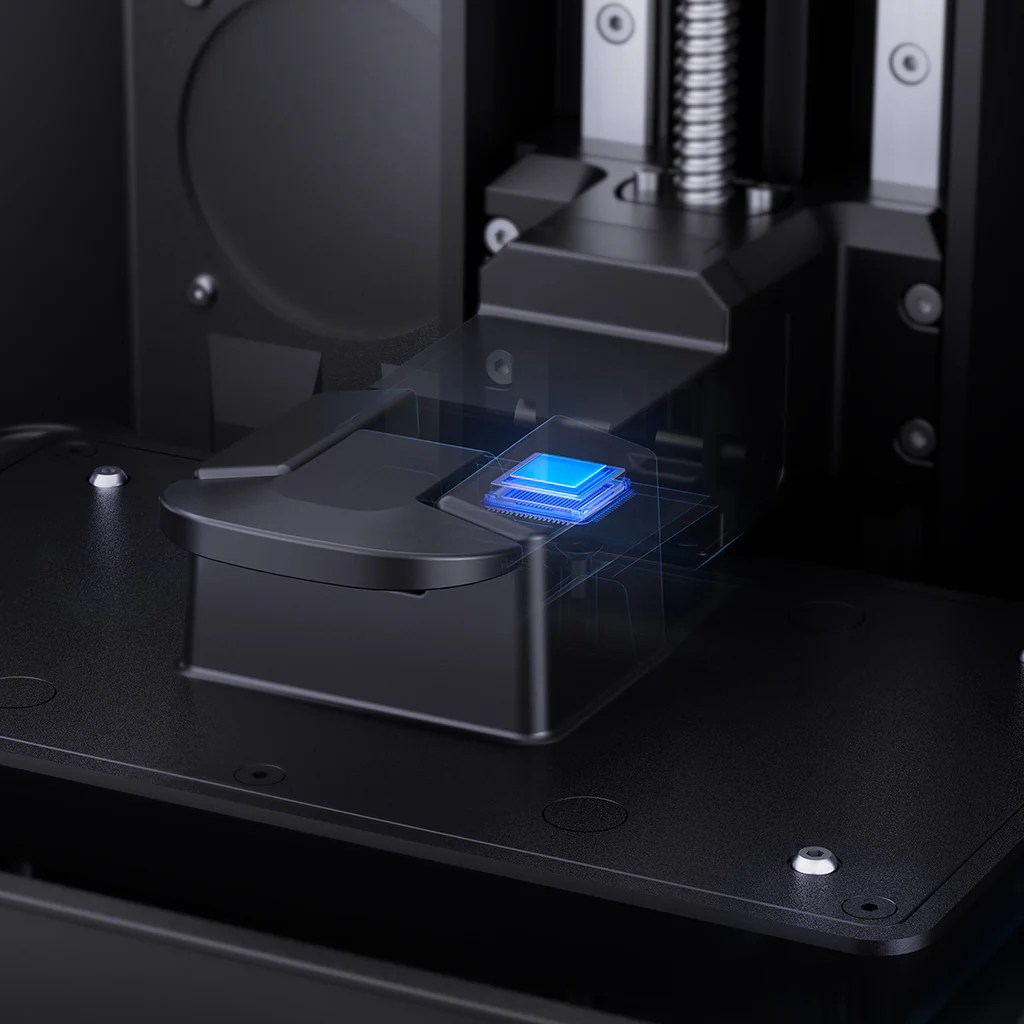

COB & Fresnel Collimating Lens For Precise Surface
When the COB light source emits light at 405nm with the combination of Fresnel collimating lens, it can achieve an ultra-low astigmatism coefficient of 0.5%, an exceptional field uniformity of 92%, and a precise angle deviation control below 5° on the forming surface, realizing accurate and even printing results with delicate finishing and intricate details.
Product Description
LCD
10-Inch 12K Mono LCD
System
EL3D-3.0.1
Slicer Software
Voxeldance Tango & ChituBox & Autodesk Fusion
Technology
MSLA Stereolithography
Layer Thickness
0.01-0.2mm
Printing Speed
MAX 70mm/h
Z Axis Accuracy
0.02mm
XY Resolution
19*24um (11520*5120)
Build Volume
218.88mm(L)*122.88mm(W)*220mm(H)
Light Source
COB Light Source + Fresnel Collimating Lens
(wavelength 405nm)
Languages
Chinese, English
Connectivity
USB Interface
Net Weight
13.5kg
Gross Weight
18.3 kg
Operation
3.5-inch Resistive Touch Screen
Power Requirements
100-240V 50/60 Hz 24V 6A
Printer Dimensions
327.4mm(L)*329.2mm(W)*548mm(H)
